KIA EV5 EARTH

PKR 23,500,000

Crossover EV New Top of the line
Range 620 km
Transmission Automatic
Power source Electric
Battery pack size 88.1 kWh
Charge time 38 min
Motor power 215 hp

Trim overview

Looking at the KIA EV5 in Pakistan? The KIA EV5 EARTH trim sits in the middle of the range for many buyers.

  • Ex-factory price for this trim: PKR 23,500,000.
  • Fuel type: electric.
  • Transmission: Automatic (AT).
  • This is the top-priced trim. The other trim is listed at PKR 18,500,000.

Available colors

Paint options listed for this trim

  • Snow White Pearl
  • Shale Grey
  • Starry Night Black
  • Ivory Silver

Running cost estimator

Based on 88.1 kWh · 620 km catalogue range

Estimated Monthly Charging Cost PKR -
Full battery charge (home) PKR -

Specifications

Full trim-level specs for KIA EV5 EARTH

Engine Type Electric
Electric Motor Power 308 HP
Battery type Lithium Iron Phosphate
Battery Capacity 88.1 kWh
Charging time 8.0 Hours
Max Speed 185 KM/H
Home Charge Time (0–100%) 14.3 Hours
Fast Charge Time (10–80% DC) 38 min
Battery Warranty (KMs) 100000 km
Battery Warranty (Years) 4 years
Range 620 km NEDC
Front Motor Power 160 kW
Rear Motor Power 70 kW
Front Motor Torque 310 Nm
Rear Motor Torque 170 Nm
Combined Power 308.4 hp
Combined Torque 480 Nm
Drive Type AWD
Overall Length 4615 mm / 15'2" feet
Kerb Weight 1870 KG
Overall Width 1875 mm / 6'2" feet
Boot Space 513 L
Overall Height 1715 mm / 5'8" feet
Seating Capacity 5 persons
Wheel Base 2,750 mm
No. of Doors 5 doors
Ground Clearance 166 mm
Transmission Type Automatic (AT)
Gearbox 1 - speed
Drive Modes Eco, Normal, Sport, Snow
Regenerative Braking Yes
Steering Type Rack & Pinion
Minimum Turning Radius 5.8 m
Power Assisted Electric
Front Suspension McPherson Strut Coil Springs
Front Brakes Ventilated Disc
Rear Suspension Multi-Link Wishbone
Rear Brakes Solid Disc
Wheel Type Alloy Wheels
Tyre Size 235/55/R19
Wheel Size 19 in
Spare Tyre No
Spare Tyre Type No
Number of Speakers 6
Display Size 12.3 in Standard LCD
Instrument Cluster Digital LCD
Seat Material Type Leather with Powered Adjustment
Climate Control Three Zone
Key Type Smart Entry
Towing Capacity 1250 KG
Charge Port Type CCS2
AC Onboard Charger 6.6 kW

Features

86 available · 86 with verified data on this trim

Exterior

Alloy Wheels 19 in
Fog Lights Yes
DRLs Yes
Automatic Headlights Yes
Headlight Height Adjuster Yes
Power Side Mirrors Yes
Auto-Folding Side Mirrors Yes
Side Mirror Indicators Yes
Power Tailgate Yes
Rain Sensing Wipers Yes

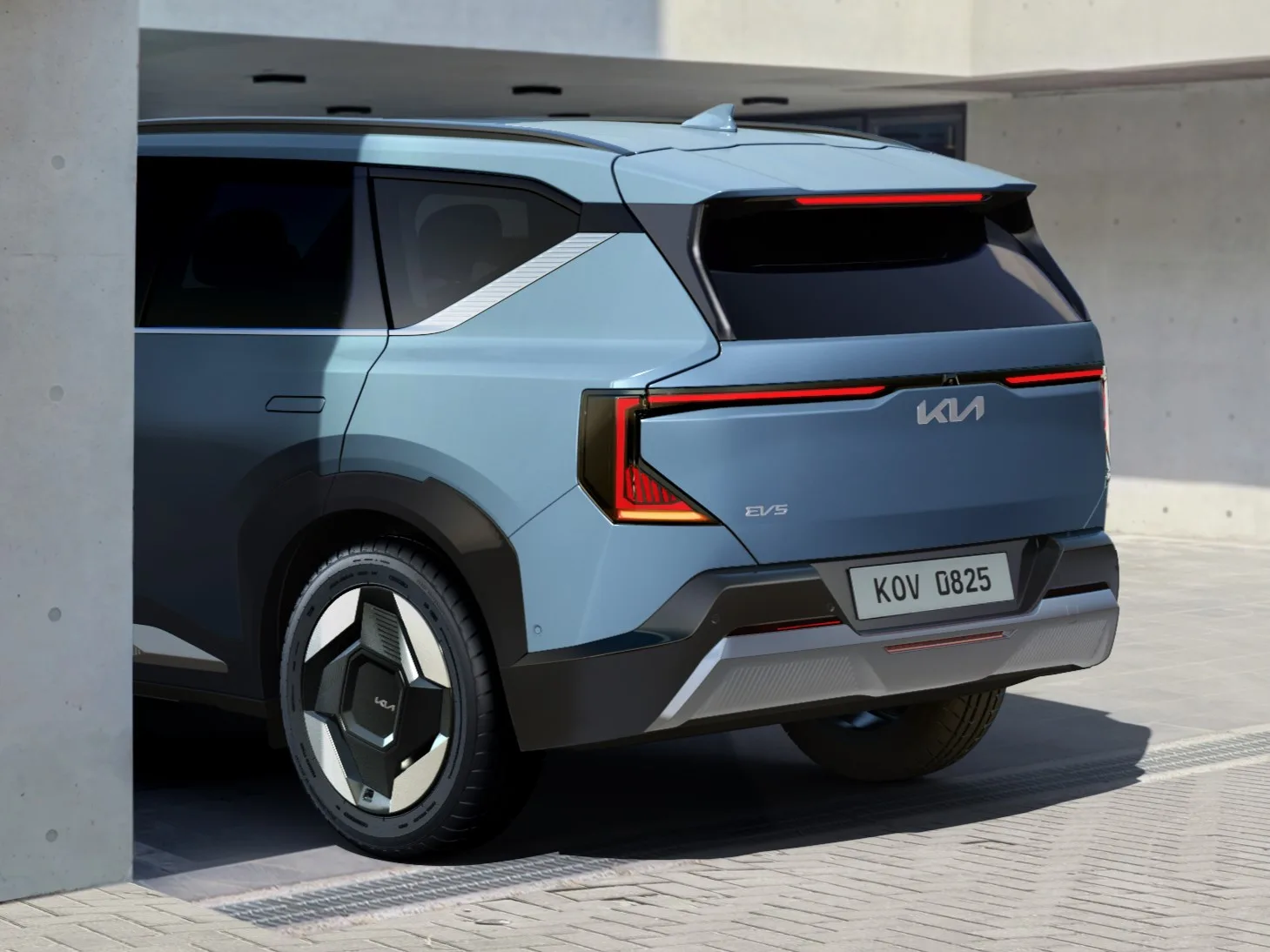

Rear Spoiler Yes
High Mount Stop Lamp Yes
Rear Defogger Yes
Trailer Hitch Prep Yes
LED Headlamps Yes
Roof Rack Yes

Safety

Airbags Yes
Seatbelts Yes
ABS Yes
EBD Yes
Brake Assist Yes
Traction Control Yes
Vehicle Stability Control Yes
Hill Start Assist Yes
Downhill Assist Control Yes
Autonomous Emergency Braking Yes
Forward Collision Warning Yes
Lane Keep Assist Yes
Lane Departure Warning Yes
Blind Spot Monitor Yes
Door Open Warning Yes
ISOFIX Yes
Immobilizer Yes
Child Lock Yes
Seat Belt Warning Yes
Speed Sensing Door Lock Yes
ANCAP Safety Rating 5
Surround View Camera Yes
Parking Distance Warning Yes
Auto Brake Hold Yes
Anti-Theft Alarm Yes
Adaptive Cruise Control Yes

Infotainment

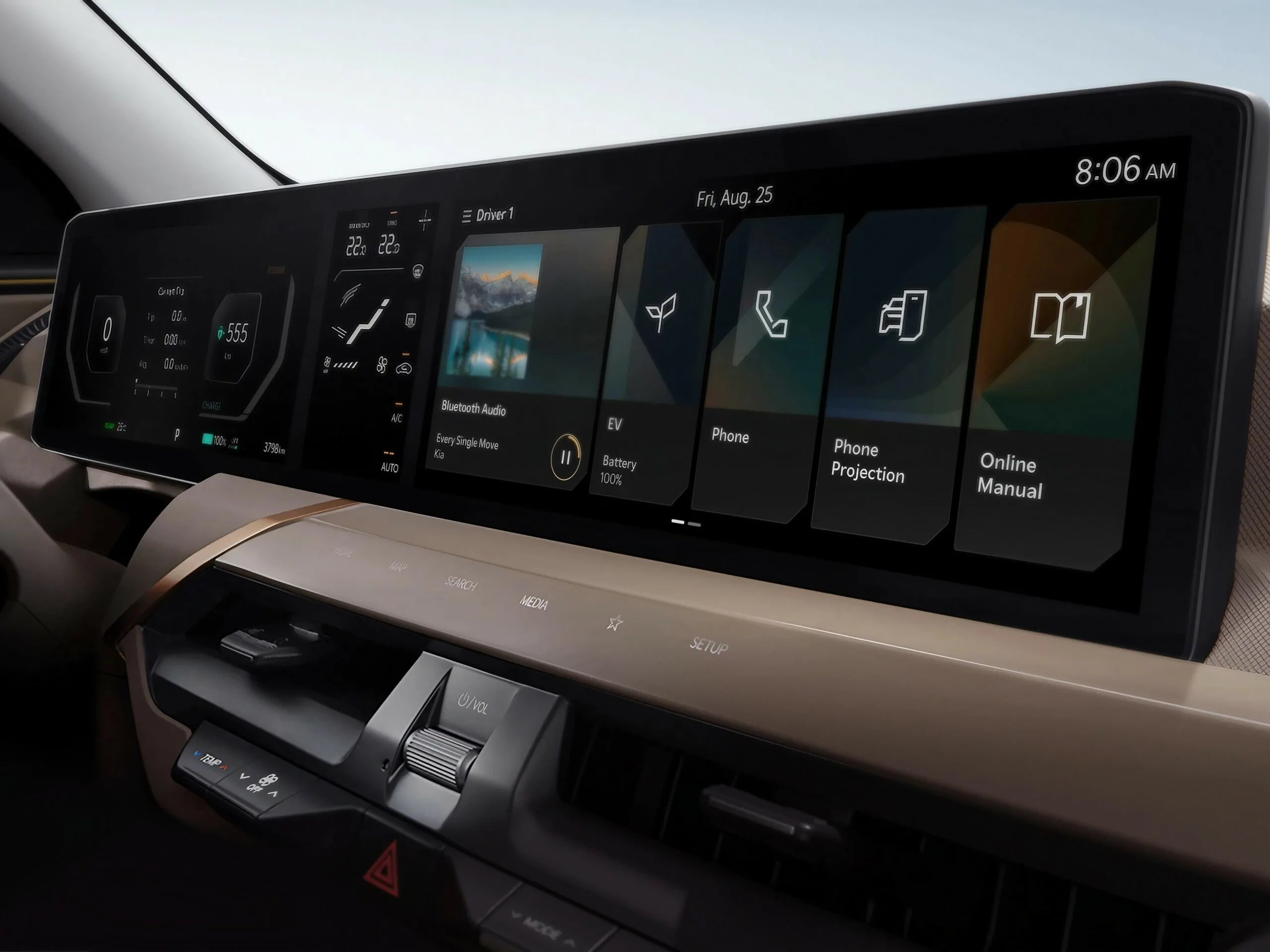

Touchscreen Display 12.3 in Standard LCD
Digital Instrument Cluster Digital LCD
Speakers 6
Apple CarPlay Yes
Android Auto Yes
Bluetooth Yes
Navigation Yes
Voice Control Yes
USB Ports Yes
Wireless Charger Yes
AM/FM Radio Yes
Heads-Up Display Yes
12V Power Outlet Yes
On-Board Computer Yes

Comfort

Air Conditioner Yes
Climate Control Three Zone
Heater Yes
Rear AC Vents Yes
Keyless Entry Yes
Power Windows Yes
Power Steering Yes
Central Locking Yes

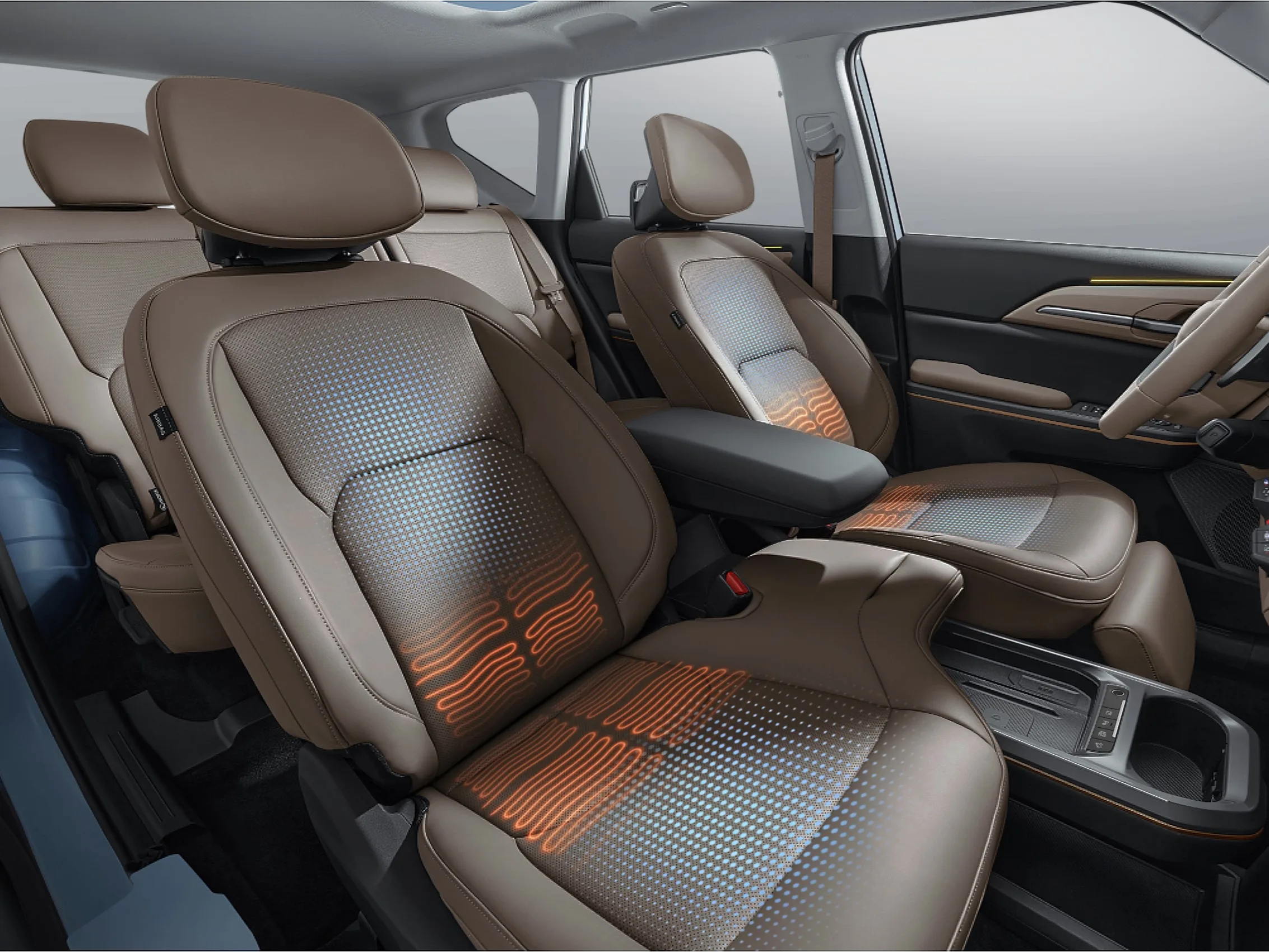

Heated Front Seats Yes
Ventilated Seats Yes
Heated Steering Wheel Yes
Power Driver Seat Yes
Lumbar Support Yes
Seat Material Leather with Powered Adjustment
Rear Folding Seats Yes
Armrest Yes
Cup Holders Yes
Steering Wheel Controls Yes
Tilt/Telescopic Steering Yes
Drive Modes Eco, Normal, Sport, Snow

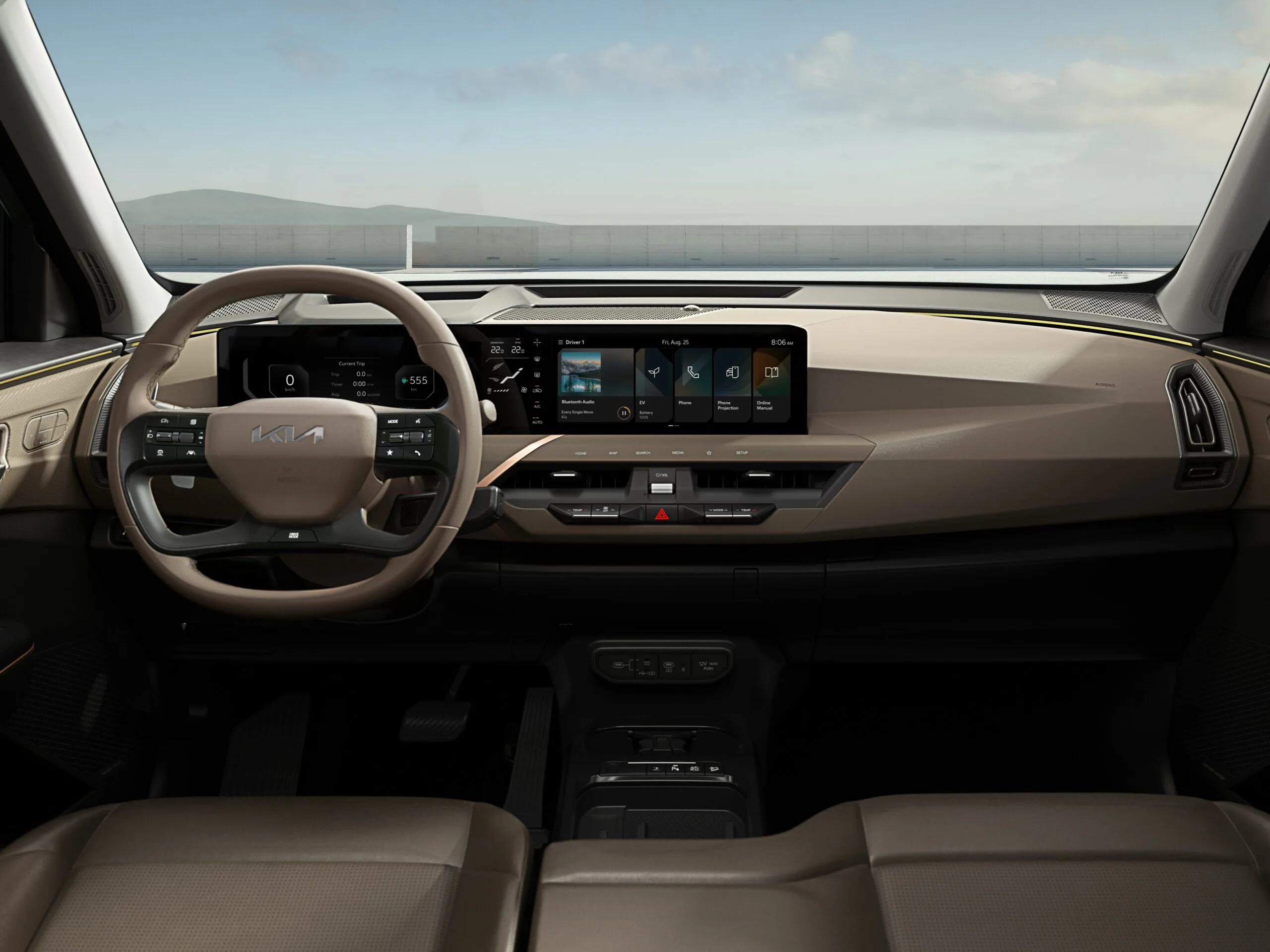

Ambient Lighting Yes
Auto-Dimming Rearview Mirror Yes
Cabin Air Purifier Yes
Headlight Ignition Reminder Yes
Vanity Mirrors Yes
Rear Headrests Yes
Cruise Control Yes
Smart Key with Push Button Start Yes
Forward and Reverse Park Assist Sensors Yes
Rear View Camera Yes

Safety features explained

What these systems do on this trim

ABS

ABS (Anti-lock Braking System) stops your wheels from locking up when you brake hard. Because the wheels keep turning, the tyres keep their grip and you can still steer around an obstacle while braking. On most modern cars it works automatically; you simply press the brake pedal firmly and keep pressing.

Read more

EBD

A simple way to remember it: EBD manages normal and firm braking so the balance is right; ABS steps in at the limit to stop any wheel locking. On spec sheets you will often see them listed together as "ABS with EBD".

Read more

Stability control (ESC / VSC)

Electronic Stability Control (ESC) watches where you are steering and where the car is actually going. If the two start to differ, which is the beginning of a skid, it brakes individual wheels and can reduce engine power to pull the car back onto your intended path. VSC (Vehicle Stability Control), ESP, DSC and VDC are simply different carmakers' names for the same type of system.

Read more

Hill start assist

Hill start assist (also called hill hold, hill start aid or uphill assist) keeps the brakes applied for a short moment after you lift your foot off the brake pedal on a slope. That gives you time to move to the accelerator and pull away without the car rolling backwards. It works automatically on most cars that have it.

Read more

Lane keep assist

Lane keep assist uses a camera to watch the lane markings and gently steers the car back if you drift out of your lane without indicating. Vehicle stability control (ESC or VSC) uses motion sensors to detect a skid and brakes individual wheels to stop the car sliding. One helps when your attention slips; the other helps when the tyres lose grip. They are separate systems, and a well-equipped car has both.

Read more

Price changes

Ex-factory change log for this variant

Current ex-factory PKR 2.35 CR
Date Before Change After
PKR 2.19 CR + PKR 16.50 Lac PKR 2.35 CR
PKR 2.35 CR - PKR 16.50 Lac PKR 2.19 CR

Catalogue ex-factory figures only. Not a dealer quote.

Price & ownership

(Estimates)

Ex-factory Price PKR 2.35 CR Catalogue starting price
Estimated On-road PKR 2.42 CR Estimate · Islamabad
Monthly EMI PKR 400,032 Estimate · 30% down · 5 yrs · 16% markup
Annual Token Tax PKR 12,000 Estimate · capacity band

Illustrative only. not a bank quote or dealer invoice. Open the calculators to change city, down payment, tenure, or markup.

Performance & charging

Driving Range

Up to 620 km

(NEDC)

AC Charging

0 – 100%

~ 14.3 hours

(6.6 kW)

DC Fast Charging

10 – 80%

~ 38 minutes

Other KIA EV5 variants

Jump to another trim

Variant Ex-factory price

215 hp, Automatic, Electric

PKR 18,500,000
KIA EV5 EARTH Top of the line Current

308 hp, Automatic, Electric

PKR 23,500,000

Report incorrect data

Spotted a wrong price, spec, or feature? Send a correction with a source link. Reports go to moderation. Nothing auto-publishes.
